Laser Cells & Receiver Assemblies

From six-junction cells to wavelength-specific assemblies: compare active area, geometry, voltage and integration scope.

Multi-junction cells & assemblies

Match active area, electrical operating point and installation.

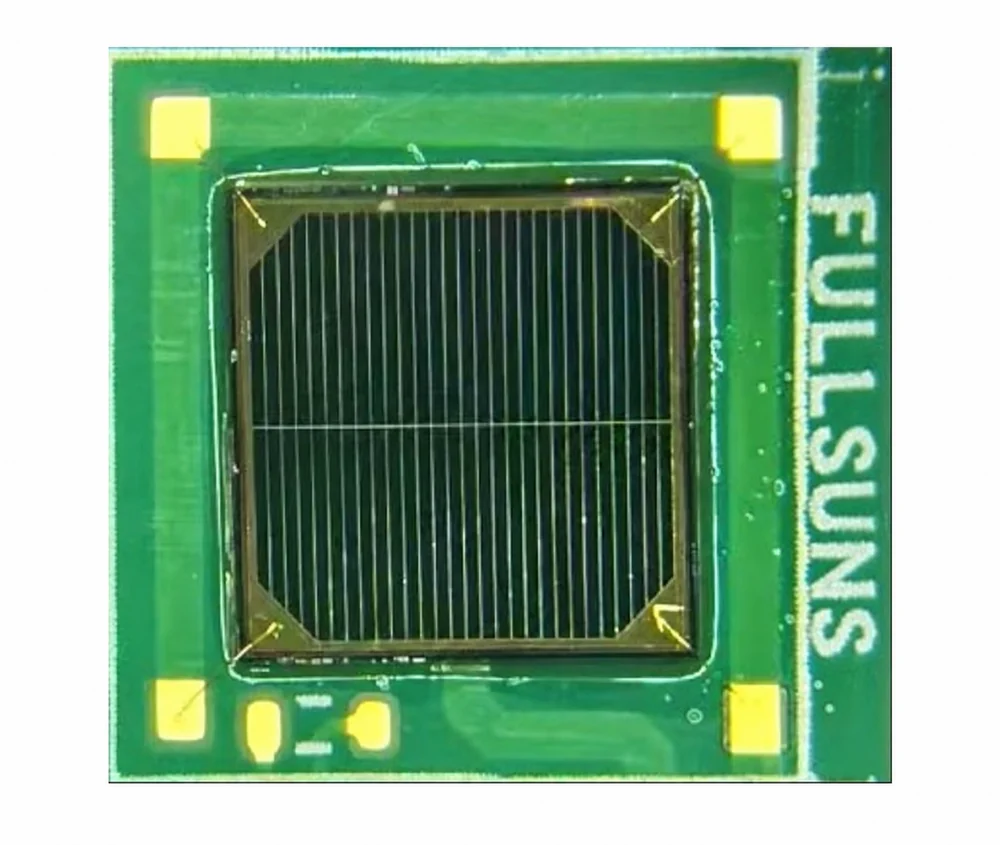

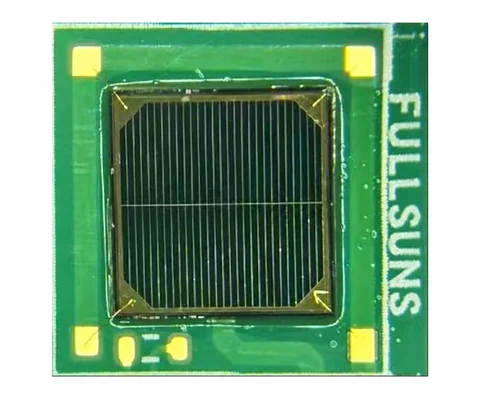

808 nm / 6 W six-junction GaAs cell

808 nm / 6 W six-junction GaAs cell

Wavelength / separate configurations
808 nm
Active receiving area
6 × 6 mm
Output voltage / options
6 V
Electrical output class
6 W

Confirm input conditions, operating point, cooling, interfaces and delivery configuration during selection.

Discuss this configuration

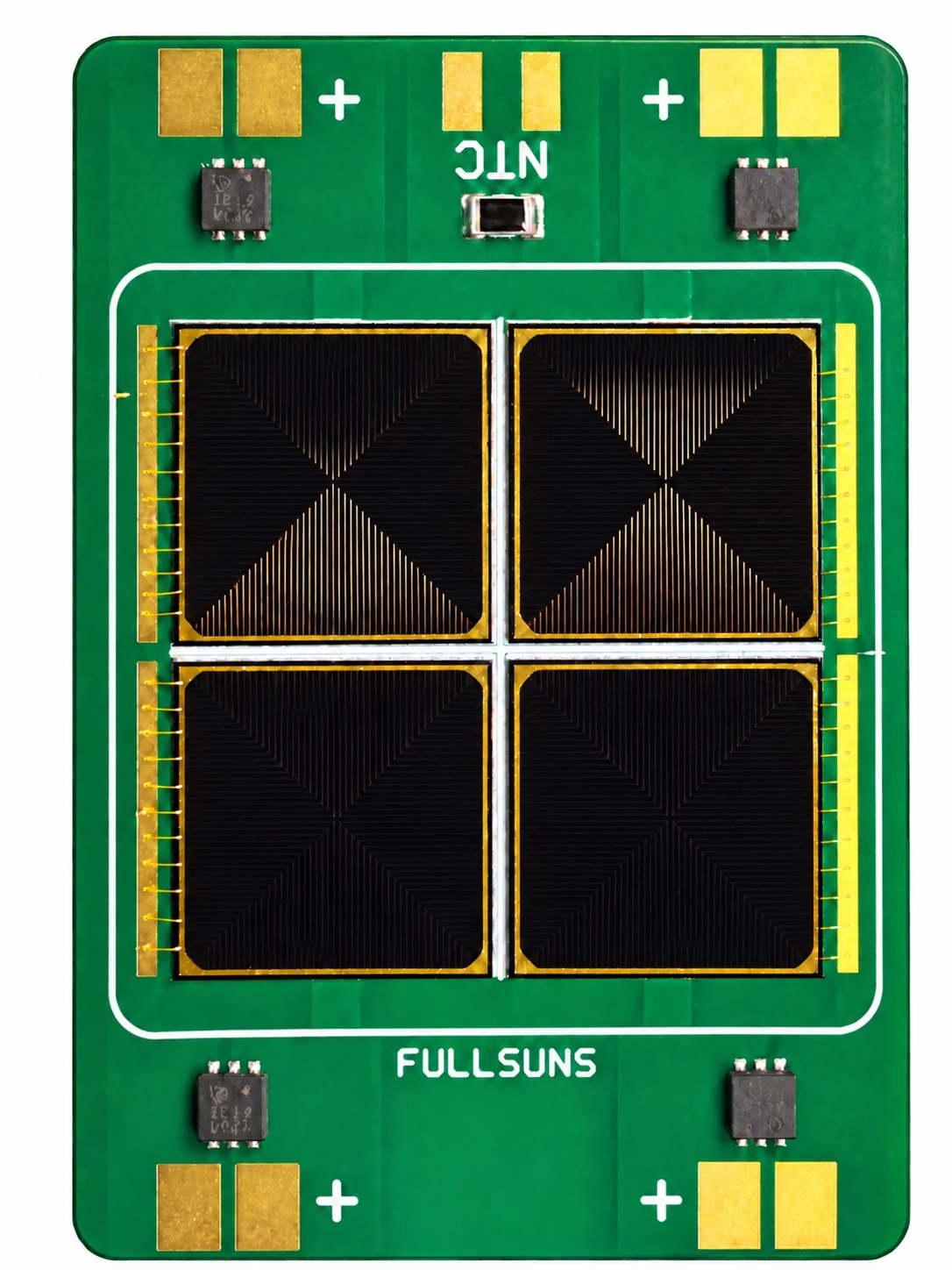

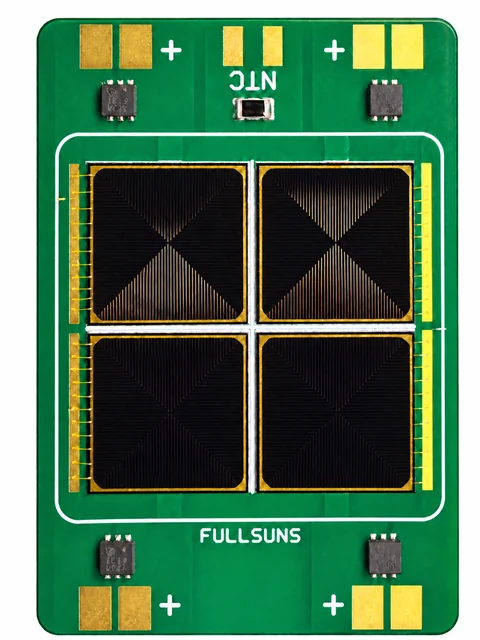

50 W wavelength-specific LPC assembly

50 W wavelength-specific LPC assembly

Wavelength / separate configurations
808 / 915 / 976 / 1064 nm
Active receiving area
20 × 20 mm
Output voltage / options
6 / 12 / 24 V
Electrical output class
50 W

Each wavelength requires its own device configuration; one assembly does not cover every listed wavelength. Electrical output depends on incident light, beam distribution and temperature. Confirm voltage and packaging for the selected version.

Discuss this configuration

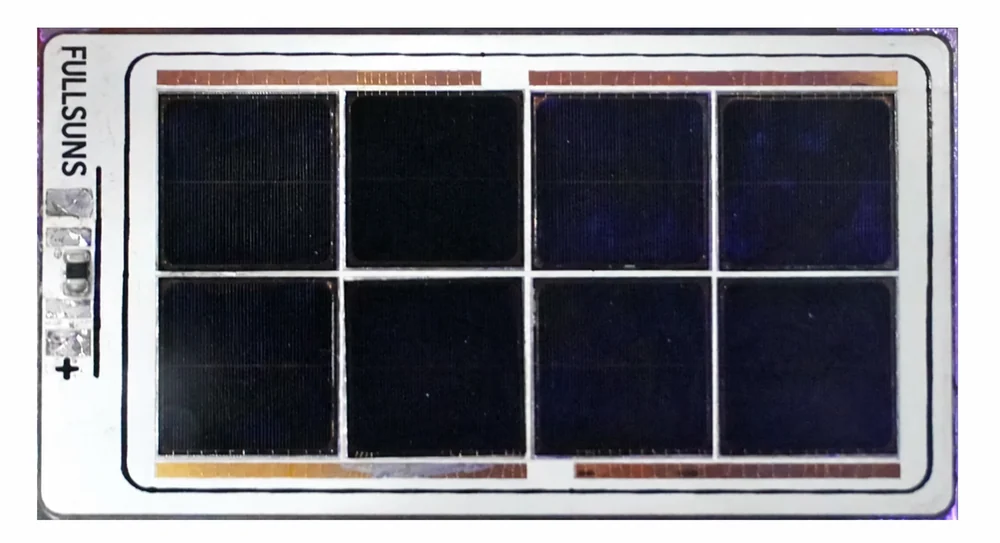

100 W Type B wavelength-specific LPC assembly

100 W Type B wavelength-specific LPC assembly

Wavelength / separate configurations
808 / 915 / 976 / 1064 nm
Active receiving area
20 × 40 mm
Output voltage / options
6 / 12 / 24 V
Electrical output class
100 W

Each wavelength requires its own device configuration; one assembly does not cover every listed wavelength. Electrical output depends on incident light, beam distribution and temperature. Confirm voltage and packaging for the selected version.

Discuss this configuration

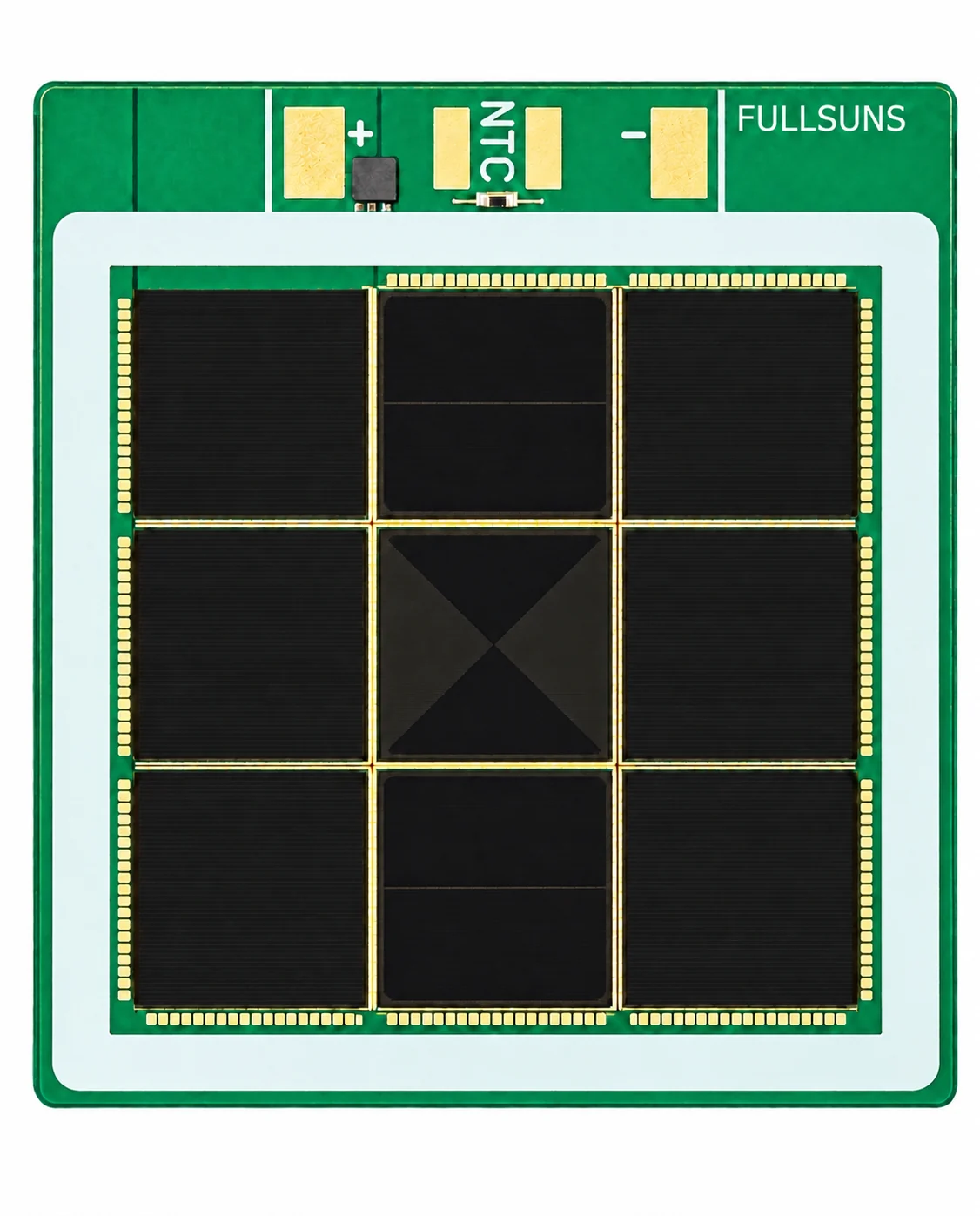

100 W wavelength-specific LPC assembly

100 W wavelength-specific LPC assembly

Wavelength / separate configurations
808 / 915 / 976 / 1064 nm
Active receiving area
30 × 30 mm
Output voltage / options
6 / 12 / 24 V
Electrical output class
100 W

Each wavelength requires its own device configuration; one assembly does not cover every listed wavelength. Electrical output depends on incident light, beam distribution and temperature. Confirm voltage and packaging for the selected version.

Discuss this configuration

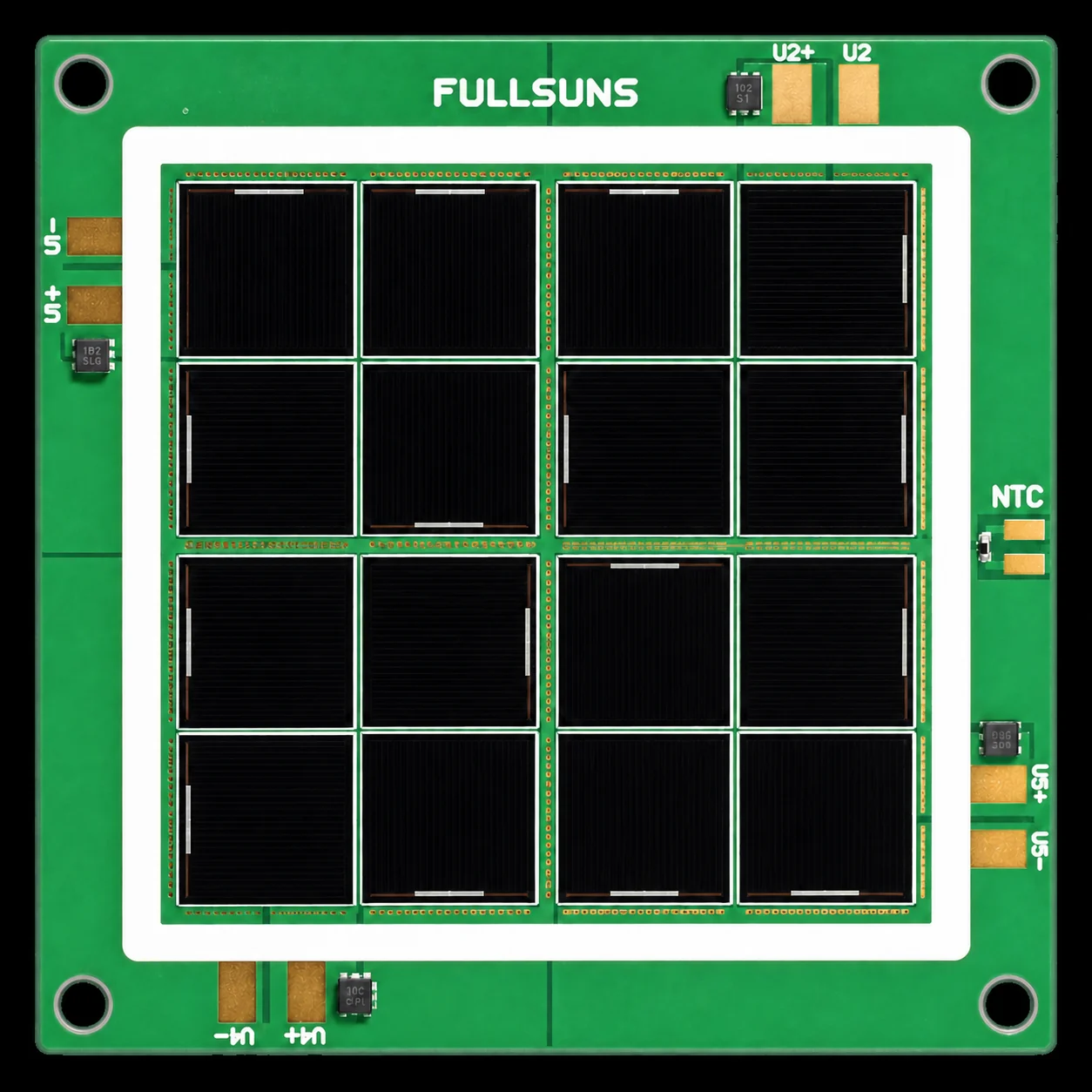

160 W wavelength-specific LPC assembly

160 W wavelength-specific LPC assembly

Wavelength / separate configurations
808 / 915 / 976 / 1064 nm
Active receiving area
40 × 40 mm
Output voltage / options
6 / 12 / 24 / 48 V
Electrical output class
160 W

Each wavelength requires its own device configuration; one assembly does not cover every listed wavelength. Electrical output depends on incident light, beam distribution and temperature. Confirm voltage and packaging for the selected version.

Discuss this configuration

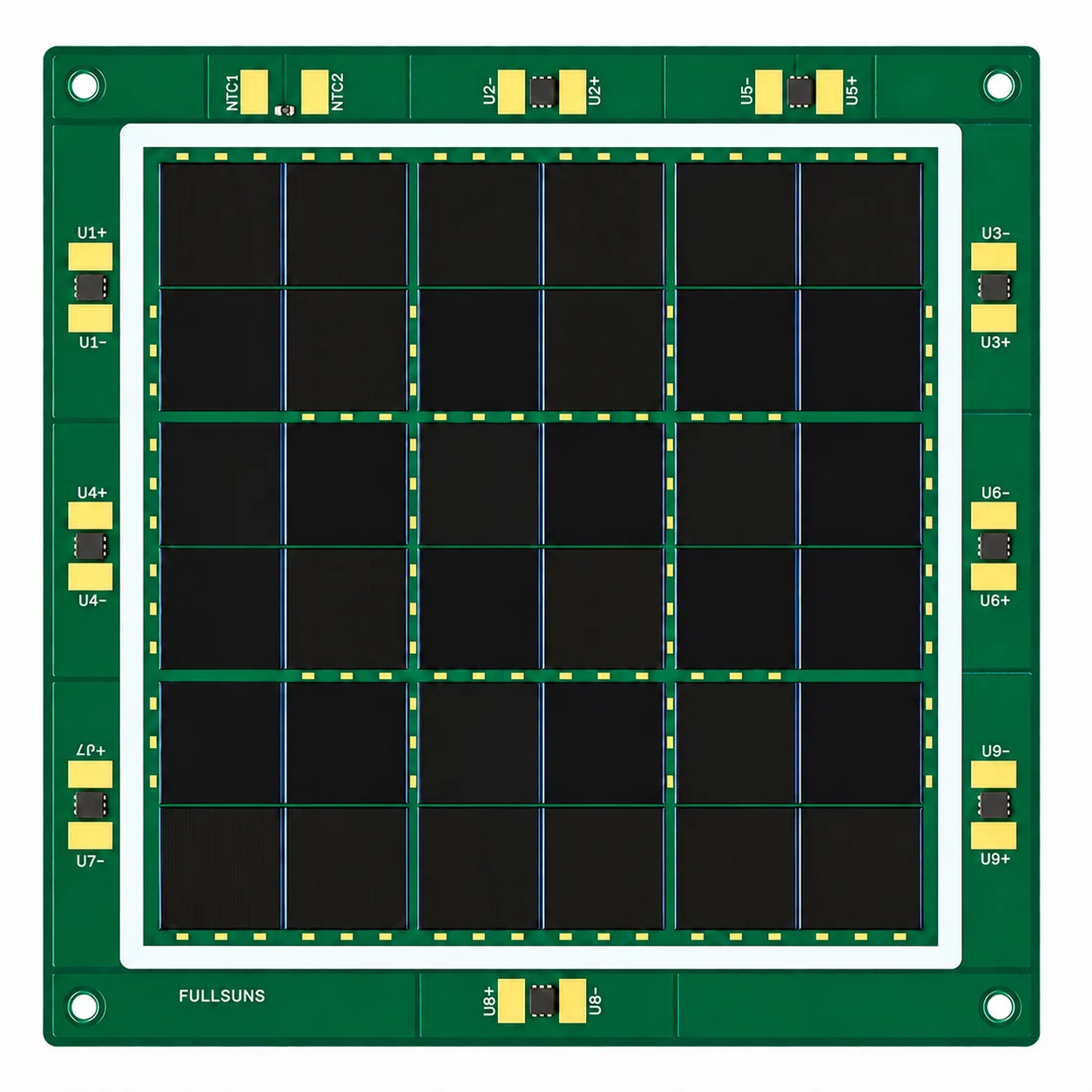

350 W wavelength-specific LPC assembly

350 W wavelength-specific LPC assembly

Wavelength / separate configurations
808 / 915 / 976 / 1064 nm
Active receiving area
60 × 60 mm
Output voltage / options
6 / 12 / 24 / 48 V
Electrical output class
350 W

Each wavelength requires its own device configuration; one assembly does not cover every listed wavelength. Electrical output depends on incident light, beam distribution and temperature. Confirm voltage and packaging for the selected version.

Discuss this configuration

Discuss Your Operating Conditions

Share the application, wavelength or input supply, optical/electrical requirements, receiving area or load, cooling and quantity. Unknown inputs may remain open for technical review.
